VCDS (VAG-COM Diagnostic System) by Ross-Tech has been the go-to tool for VW/Audi enthusiasts and independent shops for over two decades. It's genuinely powerful, well-documented, and used by thousands of Audi owners for everything from reading fault codes to performing complex multi-module adaptations. The Ross-Tech wiki is one of the most comprehensive resources for VW Group coding information available.
But VCDS has limits. And when it comes specifically to Matrix LED headlight activation on current Audi platforms, those limits are significant. This guide explains exactly what VCDS can do in the headlight coding space, where it stops, and what you need when VCDS isn't enough.
What VCDS Actually Is
VCDS is a Windows-based diagnostic software paired with a hardware interface cable (the HEX series from Ross-Tech). It communicates with your car's OBD-II port and provides access to individual control modules — the ECU, ABS module, instrument cluster, headlight control module, etc. — via the various bus protocols VW Group vehicles use (CAN, K-line, UDS).
Within those modules, VCDS allows you to read and write coding data, perform adaptations, run guided test procedures, and manage fault codes. The software has been actively developed since the late 1990s and its current versions support vehicles through 2024+ to varying degrees.
What VCDS Can Do for Audi Headlights
In the headlight and lighting domain, VCDS genuinely covers a lot of territory:
- Cornering fog light behavior — enabling or disabling fog light cornering assist
- Coming Home / Leaving Home duration — adjusting how long the welcome/goodbye lights stay on
- DRL brightness and behavior — adjusting daytime running light intensity and activation conditions
- Ambient lighting expansion — on supported platforms, expanding color options and zones
- Headlight basic settings — calibrating headlight aim after replacement
- High beam assist sensitivity — adjusting the threshold at which automatic high beams activate
- Dynamic indicator speed — on models with sequential/dynamic turn signals, VCDS can adjust the animation speed
These are all real, useful modifications that VCDS handles well. For an A4 B9 or Q5 owner who wants to personalize their car's lighting behavior, VCDS covers a meaningful amount of ground.
Where VCDS Hits the Wall on Matrix Activation
Matrix LED activation — switching a US-spec car from NAR (North American Regulations) to ECE (European) headlight operating mode — involves specific operations that go beyond what VCDS's security access level allows.
Here's the technical reality:
Security Access
VW Group vehicles use a tiered security access model. Many coding operations in VCDS require entering a security access code — a number that unlocks certain adaptation channels within a module. Ross-Tech maintains a database of publicly known security access codes for common operations.
Matrix LED activation requires access levels that Audi has not released publicly. The relevant operations in the headlight control module (and related modules) require either SFD (Scaler Function Descriptor) authorization — a more modern system used in 2018+ vehicles — or higher-level ODIS credentials that Ross-Tech doesn't hold.
SFD and ODIS-S

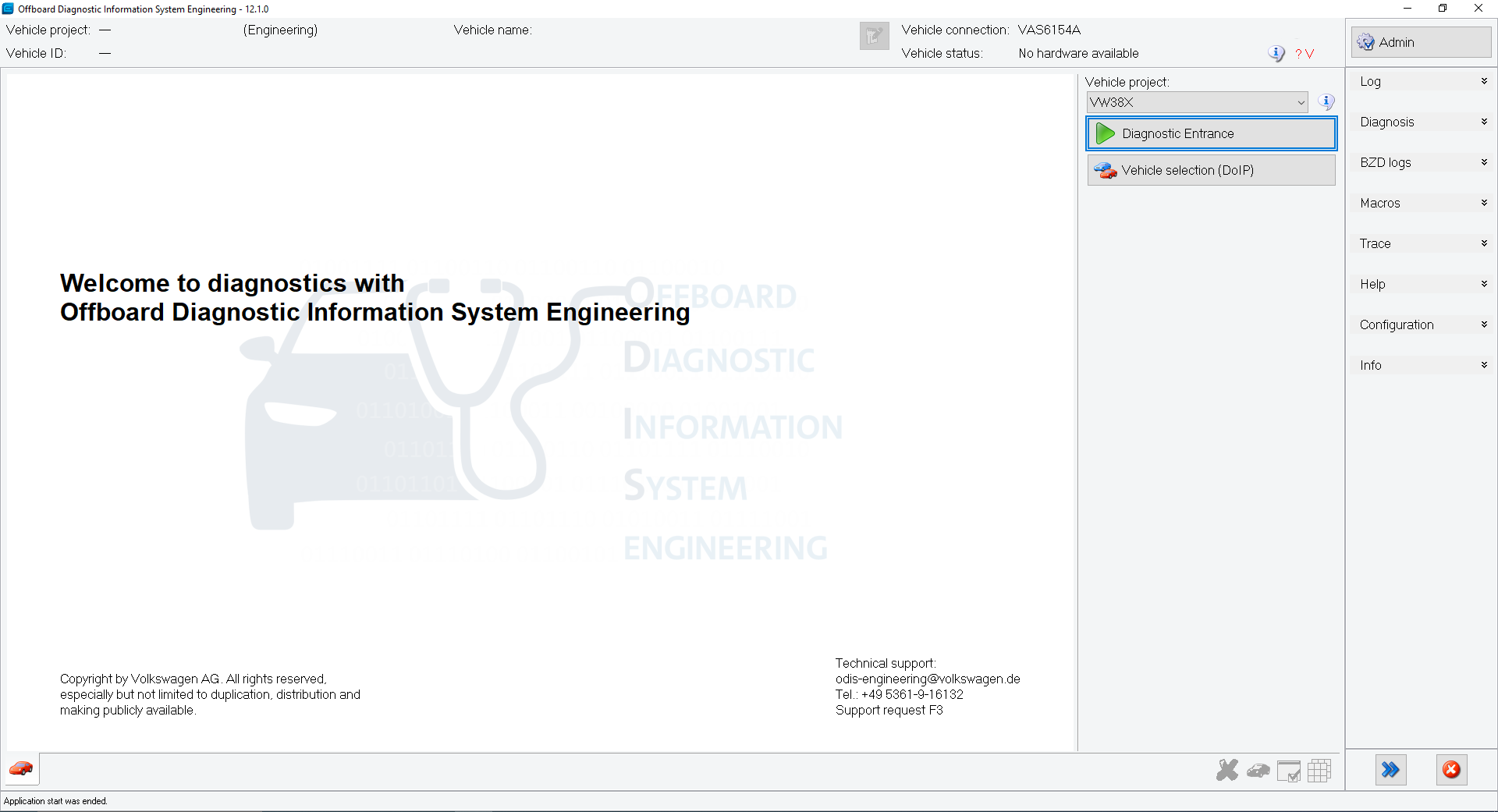

From roughly 2018 onward, Audi implemented the SFD (and later SFD2) framework, which requires operations to be authorized through Volkswagen's server infrastructure during execution. VCDS cannot perform operations gated behind SFD because it doesn't have the authentication channel to VW's authorization servers. ODIS — the dealer-level tool — does.
Module Programming vs. Coding
Full Matrix activation isn't just a long-coding change — it involves a combination of coding changes, adaptations, and in some cases module software updates. The programming operations specifically require ODIS-level access. VCDS handles the coding portion but can't reach the programming layer.
The Partial VCDS Approach (and Why It's Not Enough)
You'll find forum threads describing partial Matrix-related changes achievable via VCDS. Common examples:
- Changing byte values in the headlight control module long-coding to toggle certain behavior flags
- Adapting the high beam assist sensitivity
- Enabling specific light functions that are "off" in factory US coding
These changes are real and some do affect how the headlights behave. But they don't deliver full Matrix operation — the adaptive high-beam functionality that sculpts light around other vehicles requires the complete ECE mode activation, not individual flag tweaks.
In some cases, partial VCDS changes can actually create confusion — the car's behavior changes but doesn't match either NAR or full ECE operation, which can complicate a subsequent proper ODIS activation.
When to Use VCDS vs. When to Use an ODIS Service
| Operation | VCDS | ODIS Needed |
|---|---|---|
| Fault code reading/clearing | ✓ VCDS | |
| DRL behavior adjustment | ✓ VCDS | |
| Coming Home light timing | ✓ VCDS | |
| High beam assist sensitivity | ✓ VCDS | |
| Ambient light expansion | ✓ VCDS | |
| Battery coding after replacement | ✓ VCDS | |
| Full Matrix LED activation | ✗ | ✓ ODIS |
| Component protection removal | ✗ | ✓ ODIS |
| SFD2-gated operations | ✗ | ✓ ODIS |
Bottom Line
VCDS is a genuinely excellent tool for Audi coding — it earns its reputation. For the specific operation of full Matrix LED activation on current platforms, it doesn't have the access required. That's not a criticism of VCDS; it's a reflection of how Audi has structured the security model around certain operations.
For headlight modifications within VCDS's reach, it's a great tool. For Matrix activation, you need ODIS.
